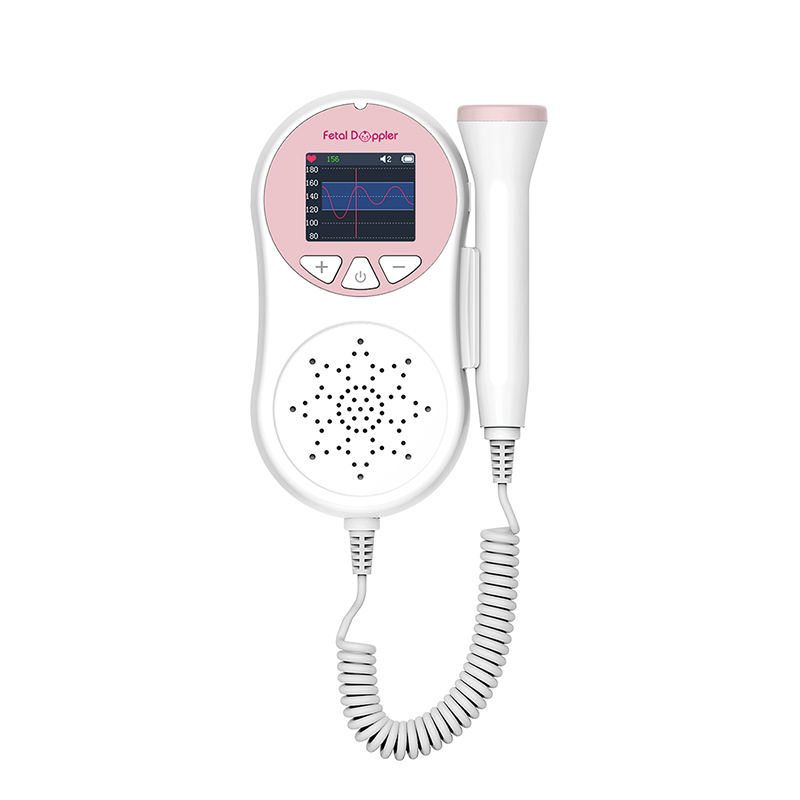

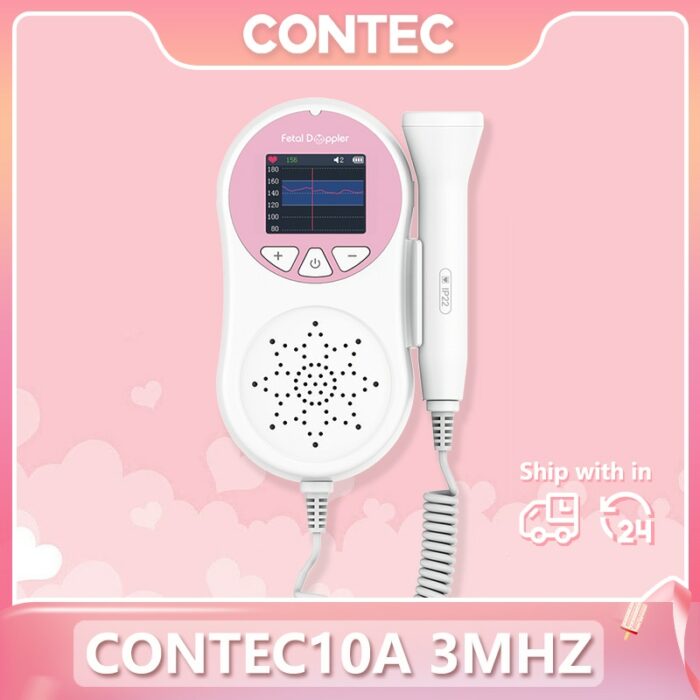

CONTEC10A Pocket Fetal Doppler

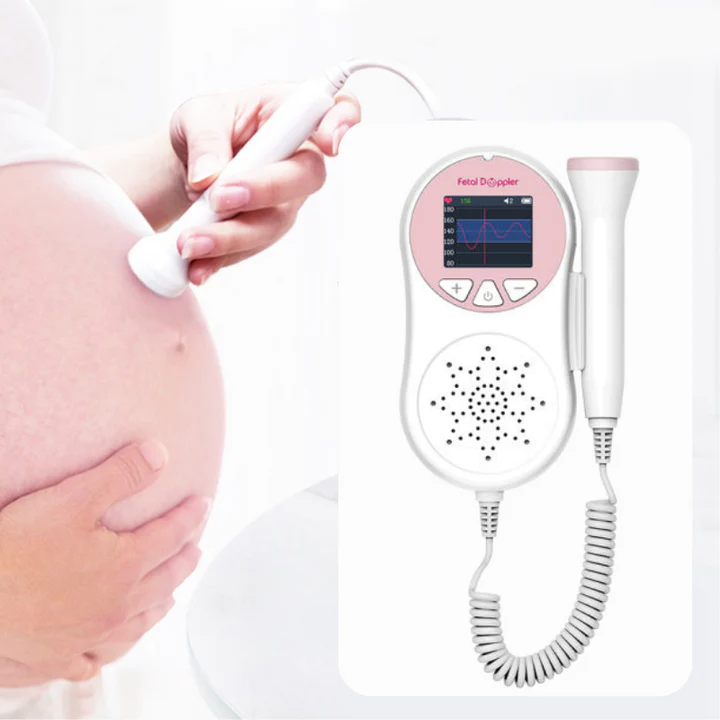

 handheld fetal heart rate detection device designed with Doppler technology.

This innovative device provides an easy and convenient way to monitor the fetal heart rate, displaying the measured FHR value and waveform on its color LCD screen. Its compact and magnetic probe design ensures convenient usage and a beautiful appearance.

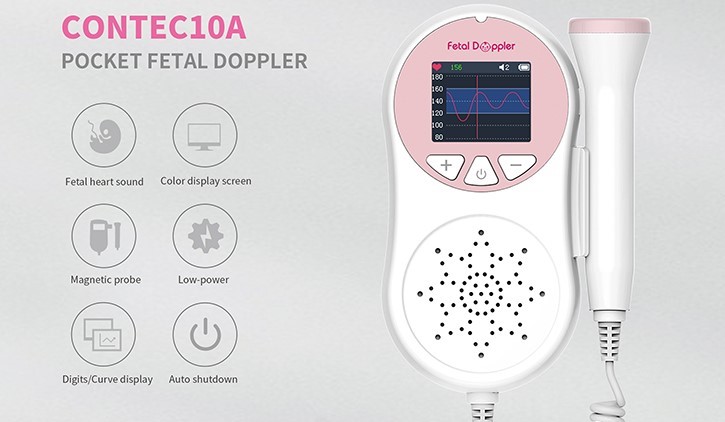

Function:

• User-friendly operation for seamless use
• Color display screen with clear digits and waveform representation
• Battery level indication for easy monitoring of power status
• Auto shutdown feature after 60 seconds of no signal input

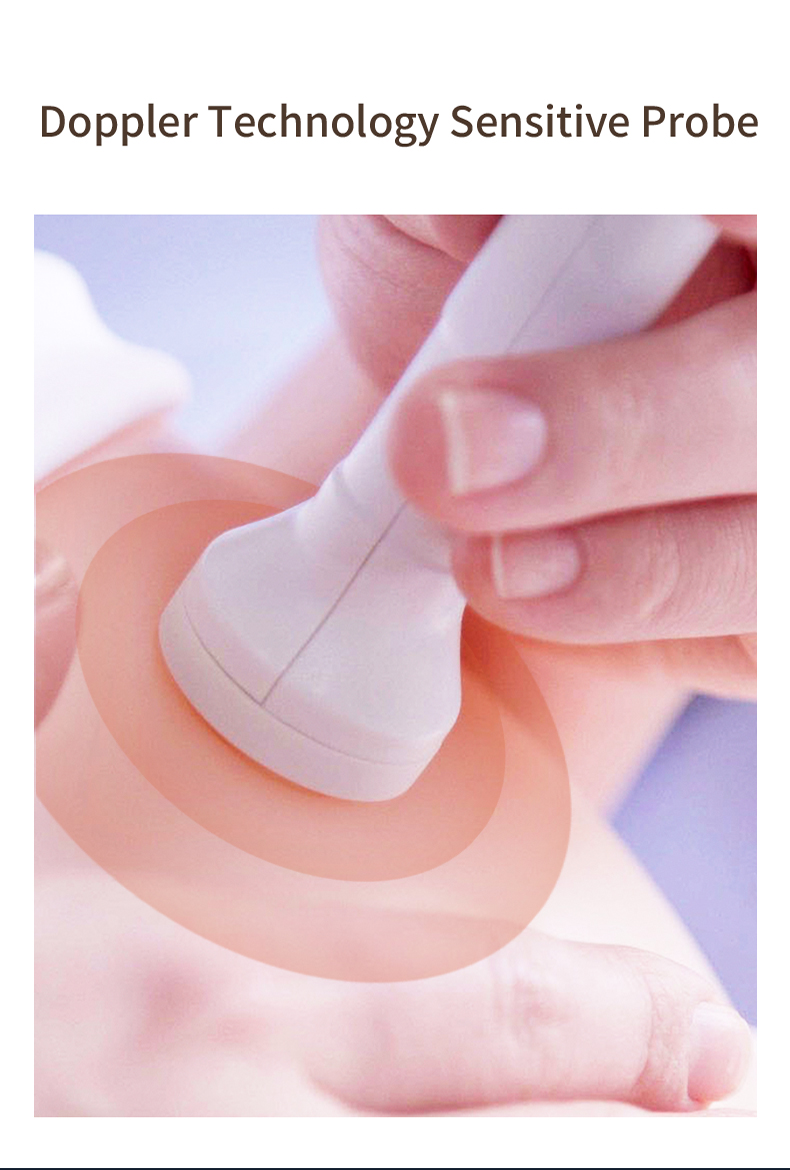

• High sensitivity Doppler probe enabling clear fetal heart sounds for pregnancies beyond 12 weeks
• Dual sound output modes: built-in speaker and external headphone, offering flexibility in usage scenarios.

Performance:

• Safety classification: internally powered equipment, type CF applied part

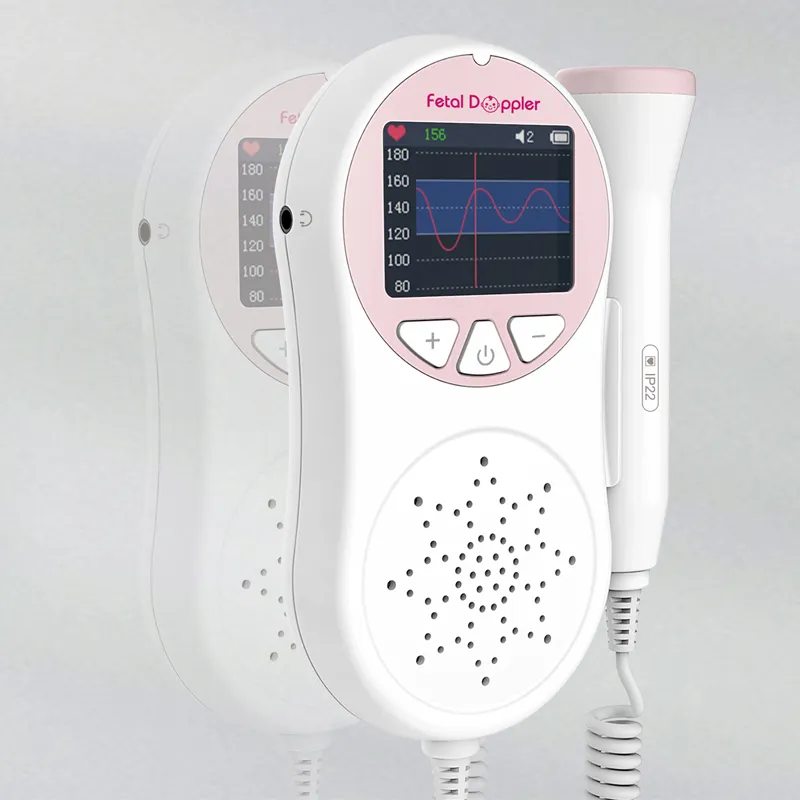

• Display: 1.77″ LCD screen for clear visualization
• FHR measurement and display range: 50 BPM ~ 240 BPM (BPM: beats per minute)
• Precise resolution: 1 BPM
• Accuracy: ± 2 BPM for reliable monitoring
• Rated working voltage: DC3 V
• Battery type: two 1.5V batteries (AA LR6) for portability and accessibility

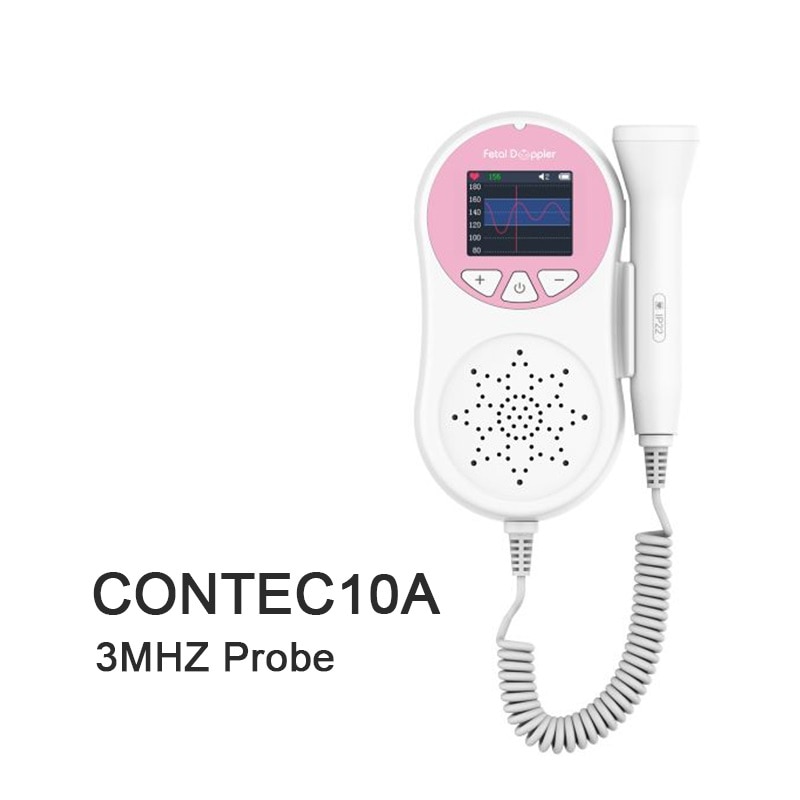

• Probe with a nominal frequency of 3.0 MHz and a working frequency of 3.0 MHz ± 10%
• Ensured safety measures with Negative Peak Sound Pressure: P_ < 1 MPa, Output Beam Intensity: Iob < 20 mW/cm2, and Spatial-peak Temporal-average Derived Intensity: Ispta < 100 mW/cm2
• Ultrasonic Output Power: P < 20 mW
• Working Mode: Continuous wave Doppler for accurate readings
• Effective Radiating Area of Transducer: ≤ 208 mm2

Accessories:

• Includes a comprehensive User Manual for easy setup and usage.

Physical Characteristics:

• Compact dimensions of 157mm(L) × 99mm(W) × 27mm(H)
• Lightweight design, weighing approximately 207g (with batteries), ensuring portability and ease of handling.
